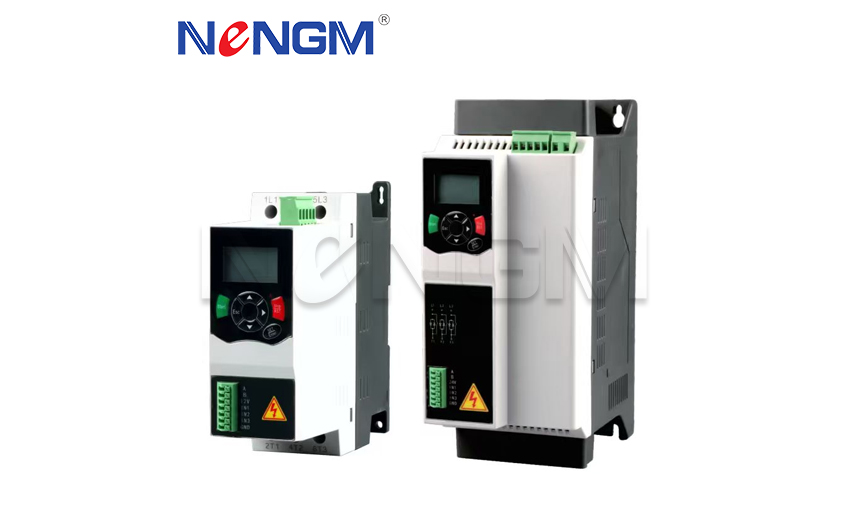

Overview

The intelligent AC motor soft starter is designed and produced using power electronics technology, microprocessor technology, and modern control theory.

A new type of starting equipment with current international advanced level. This product can effectively limit the starting current of asynchronous motors during startup, and can be widely used in loads such as fans, water pumps, conveyors, and compressors. It is an ideal replacement for traditional star/delta conversion, autotransformer voltage reduction, magnetic control voltage reduction, and other voltage reduction starting equipment.

This soft start drive board adopts a separate detection method for three-phase current for control. Compared with traditional soft start that uses a combination of three-phase current and superimposed sampling, the independent detection and control of three-phase current make the motor run more smoothly and effectively prevent possible false alarms and phase loss problems during operation; By adopting new control technology, the operating frequency range is wider, and it can operate stably from 38HZ to 68HZ, making it particularly suitable for use in power generation equipment.

Effect

• Reduce the starting current of the motor, decrease the distribution capacity, and avoid investment in capacity expansion;

• Reduce starting stress and extend the service life of electric motors and related equipment;

• The smooth start and soft stop avoid the problem of water pump surge and water hammer effect;

• Multiple startup modes and wide range of current, voltage, and other settings can adapt to various load conditions and improve the process;

• Improve reliable protection functions to more effectively protect the safety of electric motors and related equipment;

• Can be used in frequent start stop situations.

Feature

• Starting method: Select different starting modes and parameter settings based on the characteristics of the load to maximize the best starting effect of the motor;

• High tech performance: Due to the use of high-performance microprocessors and powerful software support functions, the control circuit is simplified. Consistent, accurate, and fast execution speed can be achieved without adjusting circuit parameters;

• High reliability: All electrical components of the intelligent AC motor soft starter have undergone strict screening, and its main control board has undergone a 24-hour high-temperature cycle test, ensuring the high reliability of the factory product;

• Optimized structure: The unique and compact modular structure, as well as the connection method between the upper and lower lines, are very convenient for users to integrate or complete;

• Multiple protection functions: The intelligent AC motor soft starter has multiple protection functions during the start-up and operation of the motor (such as overcurrent, overload, phase loss, overheating, etc.), so there is no need to add motor protection circuits for single control, which can reduce integration or complete set costs and simplify the circuit.

• Analog signal output: can provide 4-20mA analog output signal;

• Communication interface: RS232 (or RS485) communication interface (using MODBUSRTU communication protocol) can enter parameter setting, operation and monitoring through the upper computer, achieving high intelligence control;

• Actual power setting: When the power of the soft starter is greater than the actual load power, the rated current of the soft starter can be set according to the actual load to match the soft starter with the actual load, ensuring the accuracy of various parameters such as start-up, operation, and protection;

• Programmable output relay: It can easily achieve interlocking control with other devices.

Product Model

Terms of Use

• The usage conditions have a certain impact on the normal use and lifespan of the soft starter, so please install the soft starter in a location that meets the following usage conditions.

• Power supply: mains power, self owned power station, diesel generator set;

• Input voltage: three-phase AC220 (-10%~+15%), 50Hz; Three phase AC380V (-10%~+15%), 50Hz; Three phase AC660V (-10%~+15%), 50Hz; Choose a suitable soft starter based on the different input voltages

• Applicable motor: Please specify when ordering a general squirrel cage asynchronous motor winding motor;

• Starting frequency: Standard products are recommended to start and stop no more than 20 times per hour;

• Cooling method: forced air cooling;

• Installation method: wall mounted;

• Usage conditions: When using a bypass type soft starter, a bypass contactor should be connected; When using an online soft starter, a bypass contactor is not required.

• Usage: The ambient temperature is between -25 ℃ and+40 ℃; Relative humidity not exceeding 95% (20 ℃± 5 ℃); No condensation, no flammable, explosive, corrosive gases, no conductive dust. Indoor installation with good ventilation. Vibration less than 0.5G,

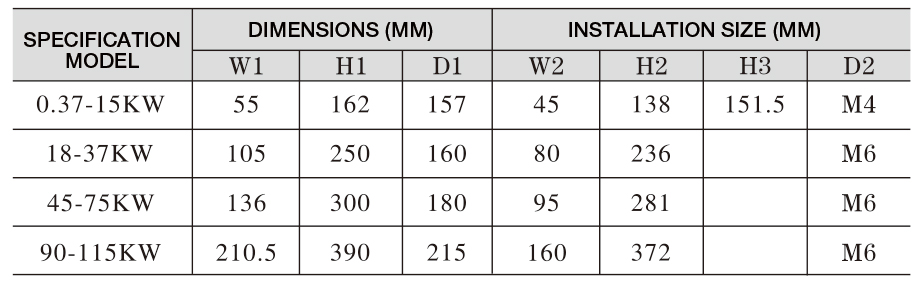

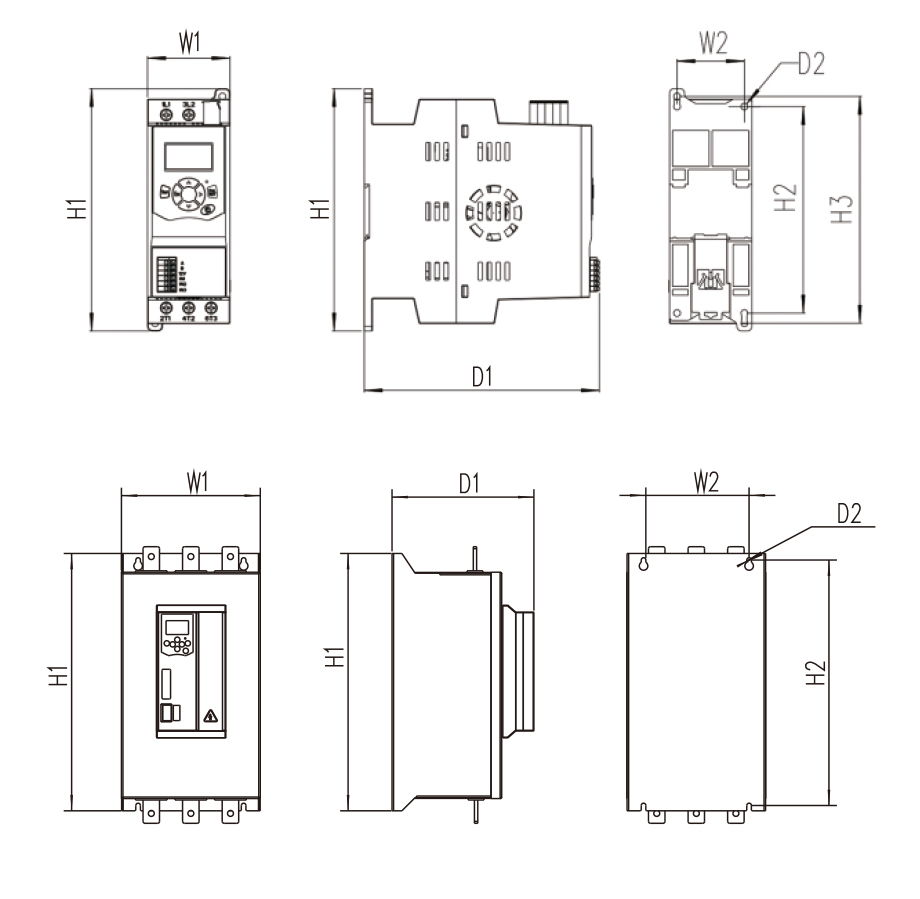

Overall Dimension Drawing
